Graphic: Park Distance Control malfunction on E83 at front

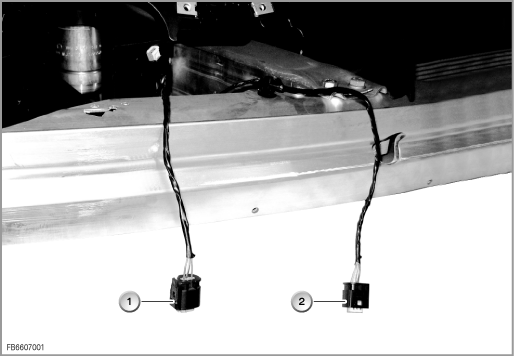

Ultrasonic sensor wiring harness location

GR_FB6607001

Index

Explanation

Index

Explanation

1

Sensor, right

2

Sensor, right centre



Ultrasonic sensor, right centre, assignment of pins after reassignment

Index

Cable colours

1

green grey

2

yellow black

3

brown blue
GR_FB6607002



Ultrasonic sensor, outer right, assignment of pins after reassignment

Index

Explanation

1

green violet

2

yellow dark brown

3

light brown yellow
