Crackling in the area of the function carrier

Repair instruction for 'crackling in the area of the function carrier'

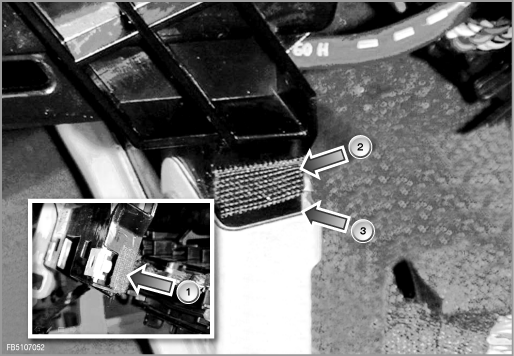

Function carrier

GR_FB5107052

(1) Fabric tape correctly bonded.

(2) Fabric tape incorrectly bonded.

(3) The noise occurs between the plastic bracket and the metal bracket.

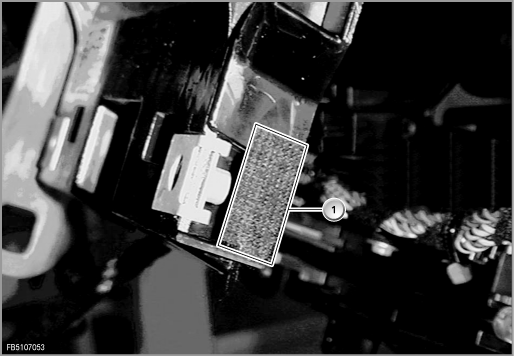

Function carrier

GR_FB5107053

The fabric tape (1) must be bonded in longitudinal direction.
