Remove the washer fluid container.
Attach closed-pore foam parts to the washer fluid container as shown.
Size: 45 mm x 20 mm x 5 mm

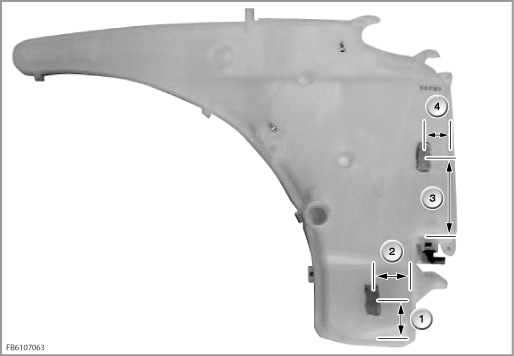

Fig. 1 shows how the position of the individual foam parts to be bonded can be determined.
Index |
Explanation |
Index |
Explanation |
---|---|---|---|
1 |
60 mm |
3 |
120 mm |
2 |
65 mm |
4 |
45 mm |
